Dialog Filter

The Dialog page displays all prompts and responses, along with microphone events.

Only the text of the dialog is displayed. The tool does not support record and playback functions.

The page includes a table showing a summary for each word recognized, number of times each was accepted or rejected, and the confidence.

Dialog can be filtered by date, event type (discarded, speak by device, recognized by device or microphone events), and word.

The most common filters to use would be Speak by Device and Recognized by Device when investigating recognition issues. Filter by start and stop time or a particular word for more granularity.

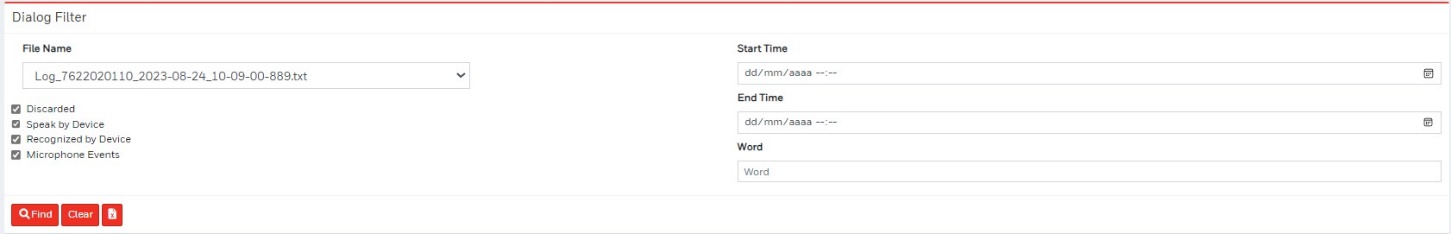

Dialog Filter Panel

The table below provides a summary of words spoken by the operator during the workflow. This summary by word shows the accepted and rejected occurrences along with confidence values.

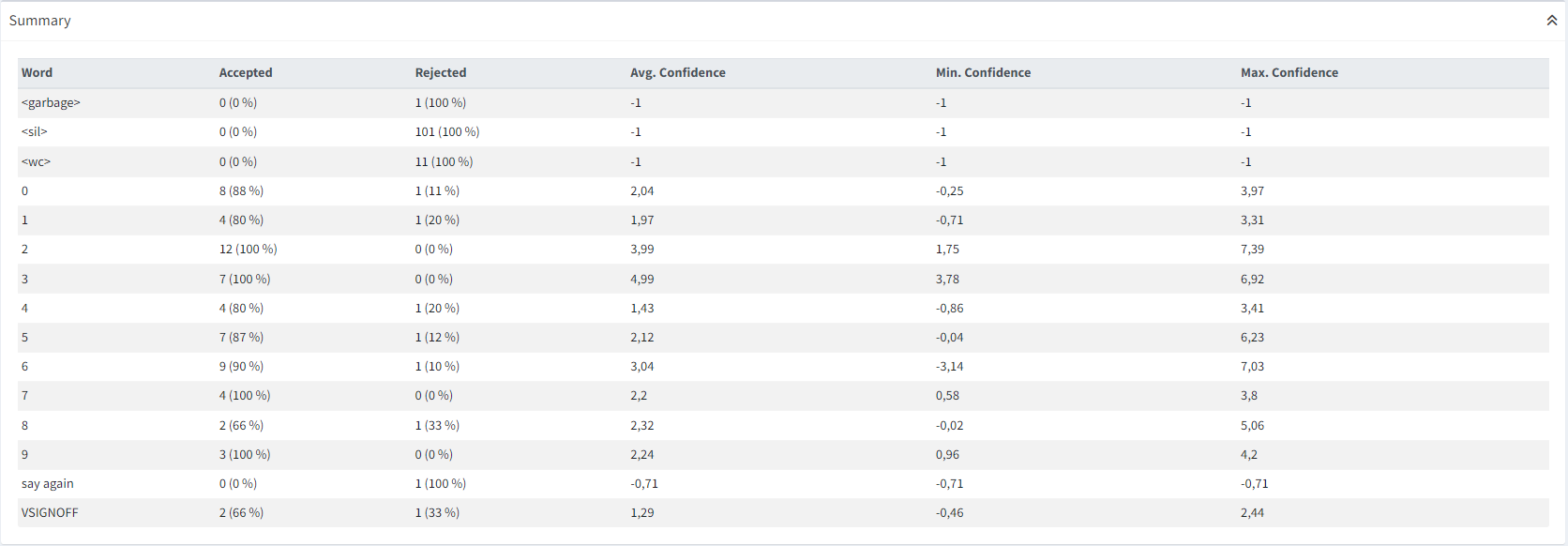

Summary Table for Dialog Events

The table below displays the data used to generate the summary above.

Events are indicated by the following colors and icons.

This icon identifies dialog from the device.

This icon identifies ignored or rejected dialog.

This icon identifies dialog from the operator.

This icon identifies dialog from the system.

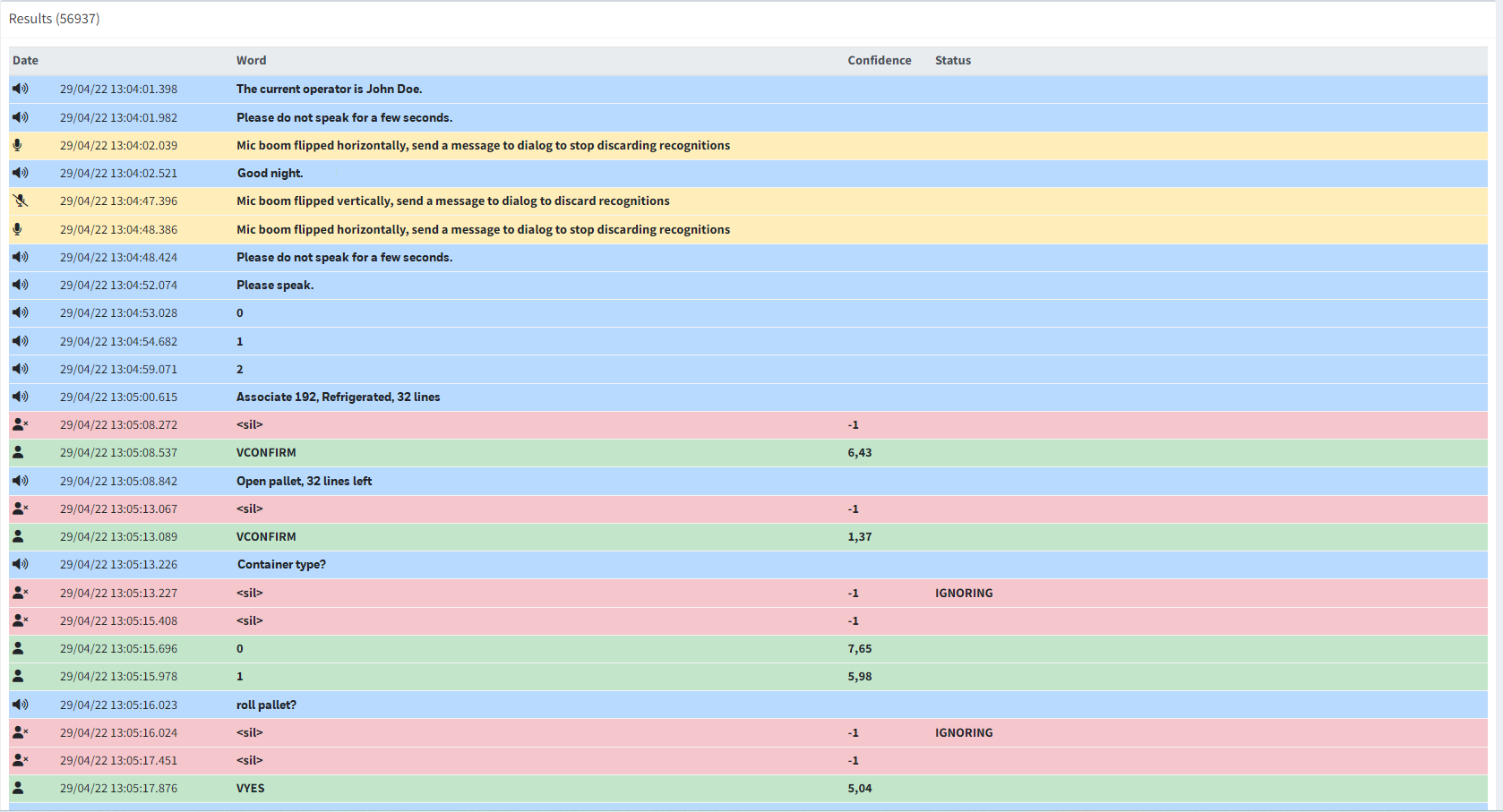

Dialog List

In the Dialog Filter section, set the filters by:

• checking the desired items in the list
• entering local dates and times

Next click the Find button or press Enter.

Filters can be removed by clicking the Clear and Find buttons in that order.
