Replace an Earpad

  1. Hold the headset so that the earpad faces you and the electronic module faces away.
  2. Grasp the earpad and earpad plate assembly and rotate them to the left to unlock the plate from the headband.
  3. Lift the pad and plate assembly off of the headband.
  4. Install the replacement pad.

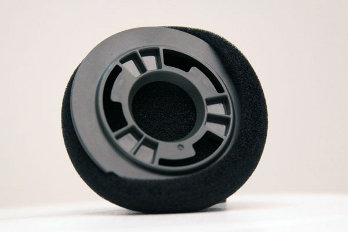

    1. Remove the ear pad by pulling it away from the ear pad plate.
    2. Slide one side of the new pad over the edge of the ear pad plate and gently stretch the pad until it covers the plate.
    3. Ensure that the lip of the new pad completely covers the ear pad plate all the way around.

    Installing a new earpad

  5. Place the new earpad and earpad plate assembly onto the headset earpiece.
  6. Rotate the assembly to the right pressing gently into the earpiece until the assembly locks into place.
