Wearing the SRX2/SRX3 Hard-Hat Headset

The SRX2/SRX3 Hard-Hat Headset fork and disk assembly has two lock positions that allow for easy wearing, removing and storing the hard hat with the headset attached. The inner position keeps the earcup snug to the ear; the outer position enables the headset to be swiveled in the clip without causing wear to headset parts or to the hard hat.

  1. Hold the hard hat firmly.
  2. Push the headset earcup in toward the head area of the hat until it snaps into its inner position.

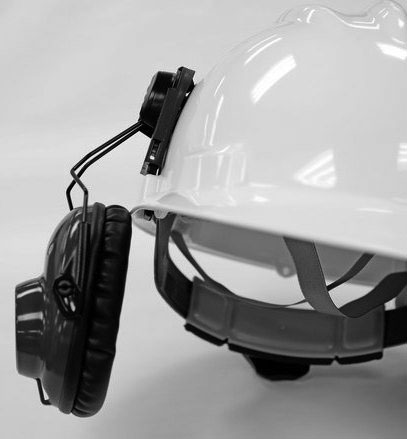

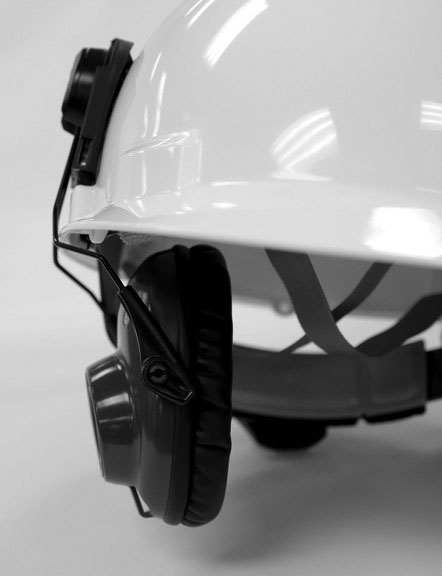

    Headset lock positions

    Headset lock positions

  3. Slide the hard hat onto your head, pulling the earcup out as needed, then position the hat so the earpad is snug against your ear.
  4. If the earpad sits too low or high on your ear, take off the hard hat and adjust the earcup by pulling or pushing the arms of the fork out of or into the fork sleeves.

  5. Insert the SRX2/SRX3 electronic module into the pocket on the earcup by aligning the notches on the speaker and earcup pocket.
  6. Push the electronic module into the earcup pocket until it is firmly seated.
