Installing the SRX2/SRX3 Hard-Hat Clip

The SRX2/SRX3 Hard-Hat headset attaches to the side of a hard hat using a clip that must be mounted on the hard hat. Honeywell offers two clip styles, one designed to insert in a hard-hat slot and one that mounts over the side brim of a non-slotted hard hat. Other hard-hat clips may be purchased and used provided that they fit the hard hat and attach correctly to the SRX2/SRX3 earcup. Vendors such as Howard Leight offer these products.

The hard-hat clips are not designed for frequent removal. It may be necessary to order extra clips if users intend to alternate wearing the headset earcup on the left and right sides.

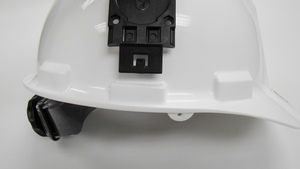

• Inserting a slotted-mount clip in a hard hat
  • Position the clip with the tab pointing into the slot on the side of the hard hat.
  • The angle of the clip should follow the contour of the hard hat with the rubber stops on the back side of the clip facing the hard hat.
  • Align the tab of the clip to fit into the slot.



  • Slide the clip into the slot until the tab clicks in place and it is firmly seated.

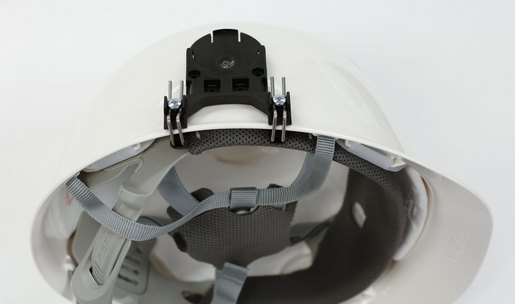

• Mounting a brim-mount clip on a hard hat
  • Loosen the screws that secure the two clip brackets to the clip.
    For large brim hats, it may be necessary to remove the brackets completely in order to fit them over the brim without the clip in place.
  • From the under side of the hat, slide the brackets over the brim. If the brackets were removed, slide the bracket ends back under the screws in the clip.
  • Position the clip on the outside of the hard hat, centered on the side of the hat.



  • Tighten the screws to secure the bracket and clip to the hard hat.
• Removing a clip from a hard hat
  • For a slotted-mount clip, push the end of the spring arms from under the brim in until they fit back through the slot. It may be necessary to use a tool to pry the arms from their installed position.
  • For a brim-mount clip, loosen the bracket screws and slide the brackets and clip off the hard hat.
