Mounting Brackets for a A700/A700x Vehicle Dock
The following parts are supplied by Honeywell for attaching the screw-on mount:
| Quantity | Description |
|---|---|
| 2 | Vehicle Mount, Holder/Base Screw On Attachment |
| 1 | Vehicle Mount, Arm |
| 1 | Vehicle Mount, Holder |
The following parts are supplied by Honeywell for attaching the clamp-on mount:
| Quantity | Description |
|---|---|
| 1 | Vehicle Mount, Clamp |
| 1 | Vehicle Mount, Arm |
| 1 | Vehicle Mount, Holder |
| 1 | Vehicle Mount, Holder/Base Screw On Attachment |
The following parts are supplied by Honeywell for attaching the claw mount:
| Quantity | Description |
|---|---|
| 1 | Vehicle Mount, Claw |
| 1 | Vehicle Mount, Arm |
| 1 | Vehicle Mount, Holder |
| 1 | Vehicle Mount, Holder/Base Screw On Attachment |
- Drill the holes required to secure the base to the vehicle. If using the clamp or claw mount, skip this step.
Apply some lubricant (for example, light oil or anti-seize) to the threads of the clamp mount screws.
- Screw or clamp a base to the location.
- Attach the other base to the other end of the arm and tighten once in the desired location by turning the locking lever clockwise.
- Screw the device holder to the base.

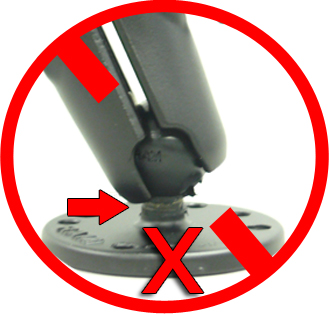

- Insert a device into the holder.To prevent vibration, the arm of the mounting bracket should not touch the stem of the ball of the base. In other words, the arm should not be tilted so far as to have these pieces touching.
