Inserting a Battery into a Talkman A500 Device

Make sure the battery is fully charged before inserting.

  1. Hold the Talkman so that the red and yellow ports are facing away from you.
  2. Hold the battery with the pins facing away from you and so that the logo is on top.
  3. Place the battery in at an angle, pins end first.

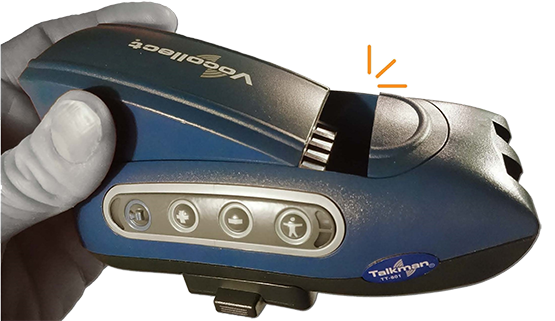

    Properly Inserting a Battery

  4. Push the back of the battery into place.
    You hear a click when the battery is in place.
    Do not force the battery into the compartment. You may damage the battery or the device. If the battery does not snap easily into place, reposition the battery in the compartment and try again.
  5. Make sure the battery is firmly in place and can't be removed without pressing the battery release button.
    Replace a battery only with another battery that has been authorized by Honeywell for the product you are using. Use of an unqualified battery may present a risk of fire, explosion, leakage, or other hazard. See also Honeywell Battery Safety
