A500 Charger

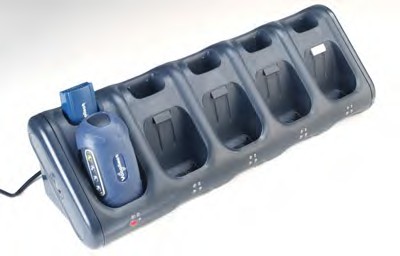

A500 10-Bay Combination Charger

• The A500 10-Bay Combination Charger can store five A500 devices at a time.
• The charger can store and charge ten batteries - five batteries in the upper battery slots and five batteries connected to devices in the lower device slots.
• The charger can also share one device's configuration with other devices being charged at the same time.
• The T5/A500 charger may be fixed to a wall using the available wall mount kit.

Do not place a device into a charger without a battery attached to it.

If a device that has been on and in use for more than eight hours, it automatically powers off and then back on after it has been in the charger for five minutes. Also, a device that has been in a charger for more than eight hours automatically powers off and then back on.

Connecting the Power Supply to the A500 Combination Charger

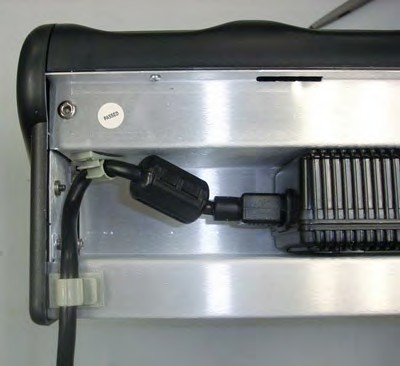

1. Connect the AC cord to the left end of the power supply that is mounted inside the charger.



2. Route the cable through the plastic clips as shown.
3. Push the clips to lock the cord in place.
